Delta CMC-PD01 Comm. Card CP2000
CMC-PD01 VFD Accessories Delta AC/ CP2000 drives
PROTOCOL PROFIBUS DP
DESCRIPTION Communication Card
Manufacturer Product Number CMC-PD01
Delta CMC-EC01 Comm. Card CP2000
CMC-EC01 VFD Accessories Delta AC/ CP2000 drives PROTOCOL ETHERCAT DESCRIPTION Communication card SPEEDS 50kbps - 1mbps Manufacturer Product Number CMC-EC01
Delta MH300 Series Drive 3-phase AC 380V
MH300 Series
Delta’s High Performance Compact Drive MH300 series is a new generation micro vector control that inherits Delta’s superior drive technology. With its advantages of outstanding drive performance, strong system support, and a variety of essential functions, the MH300 series is the key to improving market competitiveness and ensuring success. In addition, it features a USB port to make data uploads and downloads fast and easy, which saves the need for additional hardware and provides more installation space for the power cabinet.
Applications
Machine tools, textile machinery, woodworking, rubber and plastic, winding / unwinding applications
Product Specifications
Outstanding Drive Performance
- Overload capacity up to 150% / 60 sec, and 200% / 3 sec. Suitable for constant torque applications
- Supports induction and permanent magnet motors with optional PG cards for highly precise speed and position control
- Provides powerful torque output at low frequency (0.5 Hz / 200% without PG vector control; 0 Hz / 200% with PG vector control) for stable heavy-duty operation at low speed and high torque
- Built-in constant tension control function
- Speed, torque, and position control
Strong System Support
- Built-in PLC with 5k steps; Supports system programming to save costs
- Built-in STO (SIL2 / PL d) safety function and measures for sudden power outages
- All models can be connected through a common DC bus
- Built-in Modbus and CANopen interface; optional communication card, including EtherNet/IP, Modbus TCP, EtherCAT, DeviceNet, PROFIBUS DP, and PROFINET
- Optional models with built-in filter
- Optional 24V power supply card to reduce unexpected downtime
Flexible Expansion
- Built-in two 33 kHz high-speed pulse input terminals (MI6 & 7) and one output terminal (DFM)
- Built-in two accessory card slots for PG card, I/O expansion card, communication card, or 24V power card at the same time
- Expandable to 3 DI and 3 DO, including 6 ports in total
- Expandable to 2 or 3 relays
Advanced Tension Control
- Built-in roll diameter calculation by linear speed, material thickness, and distance meter
- Two PID parameters: Linearly adjustable to control tension at startup, of small / large rolls, and at high / low linear speed
- Tension taper calculation: Automatically adjusts tension per the winding roll diameter to avoid wrinkles or deformation
- Friction and inertia compensation for torque control: Automatically compensates friction and inertia during winding / unwinding for constant tension
- Automatic roll change by merely using external signal without machine shutdown
Delta C2000 Series Drive 3-phase AC 200V~240V
C2000 Plus / C2000 Series
The Delta C2000 Plus Series / C2000 Series represents the pinnacle of industrial motor control. Engineered for maximum stability and performance, this series is designed to handle the most demanding heavy-duty and constant torque applications across various industries, including metal processing, rubber, plastics, and chemical production.
Key Technical Features:
-
Heavy-Duty Performance: Overload capability up to 150% / 60 sec. and 180% / 3 sec. at rated current.
-
Universal Motor Support: Supports both sensor and sensorless vector control for Induction (IM), Permanent Magnet (PM), and Synchronous Reluctance (SynRM) motors.
-
Built-in Intelligence: Features an integrated 10k steps PLC and remote I/O integration, reducing the need for external controllers.
-
Environmental Durability: Equipped with IP55 rated fans, efficient heat sinks, and Class 3C3 conformal coating on PCBs for protection against harsh industrial environments.
-
Advanced Control: Specialized functions for master/slave torque control, positioning, and electromagnetic energy traction.
-
Global Connectivity: Built-in MODBUS and CANopen; optional cards available for EtherCAT, PROFINET, EtherNet/IP, and PROFIBUS DP.
Common Applications:
-
Extruders & Rubber Millers.
-
Injection Molding & Pipe Bending Machines.
-
Bridge Cranes & Stage Lifting Systems.
-
Conveyance & Winding Systems
DELTA MS300 – IFD6500 communicaon module
DELTA | IFD6500 |

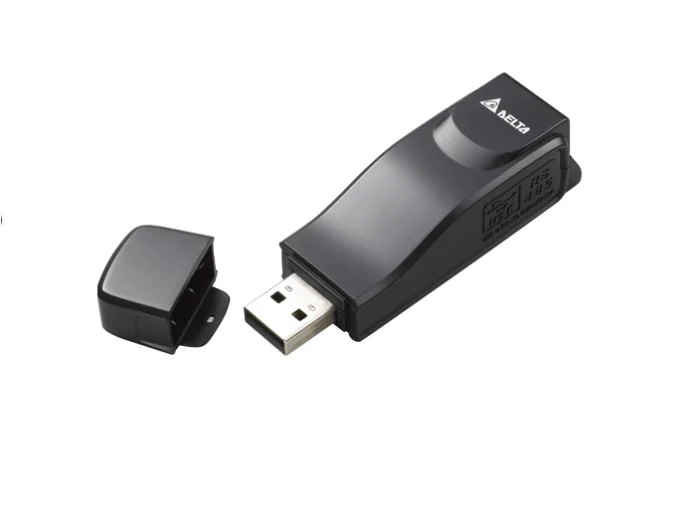

Delta Accessories(VFD-USB01) USB-RS485 communicaon module
DELTA EG5010C keypad extend cable 5M
DELTA | EG5010C |
Delta Accessorieskeypad<->inverter extend cable 5M

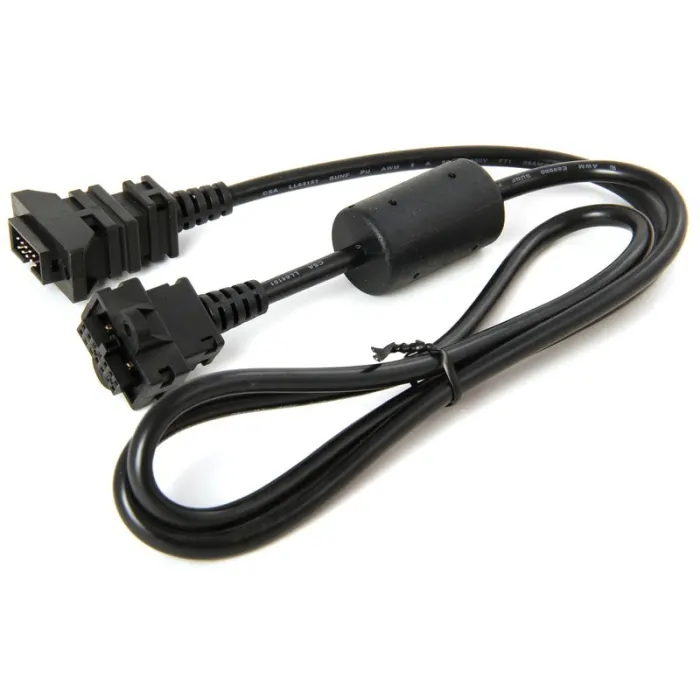

DELTA EG3010C keypad extend cable 3M
DELTA | EG3010C |
Delta Accessories keypad inverter extend cable 3M

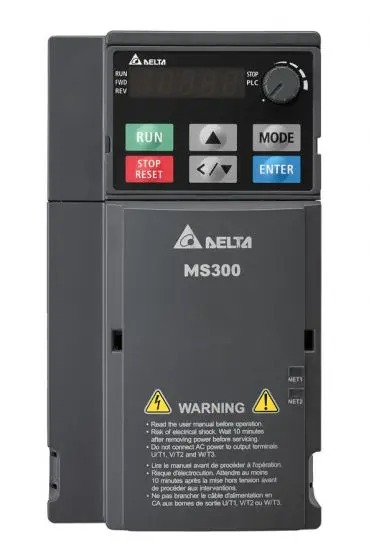

Delta VFD – MS300 – 380VAC
MS300 Series
Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system —all included in the MS300 series with drive size reduced up to 40%.
Delta VFD – MS300 220VAC
MS300 Series
Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system —all included in the MS300 series with drive size reduced up to 40%.
Delta VFD-EL 380VAC
VFD-EL Series
The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built In keypad.
Delta VFD-EL 220VAC
VFD-EL Series
The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built In keypad.
Delta VFD-EL-W 380VAC
VFD-EL-W Series
Delta’s VFD-EL-W series is the new generation compact vector control drive. Simple, delicate and durable design inherits Delta’s superior drive technology.
– Various essential functions are built-in as standard, including: Multi-step Operation; Torque Compensation; PID Control; Multi-Pump Control; Water Supply at Constant Pressure; Leakage Detection function and so on.
– It also with complete built-in protection mechanism, such as: Over-current; Over-voltage; Low-voltage; Over-heat; Over-load; Over-torque; Phase Loss Protection and so on.
VFD-EL-W not only saves the extra cost but also increase the market competitiveness with the best technics.
Delta VFD-EL-W 220VAC
VFD-EL-W Series
Delta’s VFD-EL-W series is the new generation compact vector control drive. Simple, delicate and durable design inherits Delta’s superior drive technology.
– Various essential functions are built-in as standard, including: Multi-step Operation; Torque Compensation; PID Control; Multi-Pump Control; Water Supply at Constant Pressure; Leakage Detection function and so on.
– It also with complete built-in protection mechanism, such as: Over-current; Over-voltage; Low-voltage; Over-heat; Over-load; Over-torque; Phase Loss Protection and so on.
VFD-EL-W not only saves the extra cost but also increase the market competitiveness with the best technics.
Delta Power Supply 380V/24V 960W
DIN Rail CliQ II Series
Model DRP024V960W3BN
Output Voltage 24V
Output Power 960W
Output Current 40A
Input Voltage Range 3 x 320-600Vac
Dimensions (L x W x H) 121 x255x 117.3 mm
Unit Weight 2.60kg
Highlights & Features
- Universal AC input voltage range
- Power will not de-rate for the entire input voltage range
- Power Boost of 150% for 5 seconds
- Full corrosion resistant aluminium casing
- Conforms to harmonic current IEC/EN 61000-3-2, Class A
- Extreme low temperature cold start at -40°C
- Conformal coating on PCBAs to protect against common dust and chemical pollutants
- Hazardous Locations approval for ATEX and Class I, Div 2 (DRP024V240W3BA)
- Certified according to IEC/EN/UL 62368-1

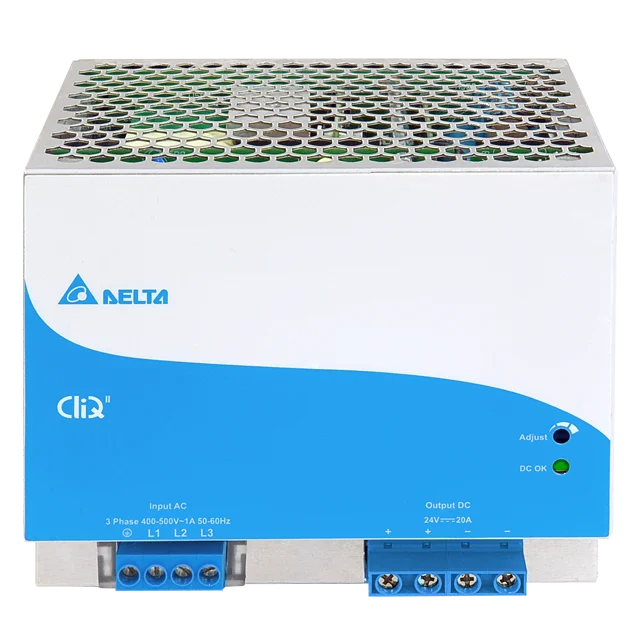

Delta Power Supply 380V/24V 480W
DIN Rail CliQ II Series
Model DRP024V480W3BN
Output Voltage 24V
Output Power 480W
Output Current 20A
Input Voltage Range 3 x 320-600Vac
Dimensions (L x W x H) 121 x140 x 117.3 mm
Unit Weight 1.35kg
Highlights & Features
- Universal AC input voltage range
- Power will not de-rate for the entire input voltage range
- Power Boost of 150% for 5 seconds
- Full corrosion resistant aluminium casing
- Conforms to harmonic current IEC/EN 61000-3-2, Class A
- Extreme low temperature cold start at -40°C
- Conformal coating on PCBAs to protect against common dust and chemical pollutants
- Hazardous Locations approval for ATEX and Class I, Div 2 (DRP024V240W3BA)
- Certified according to IEC/EN/UL 62368-1

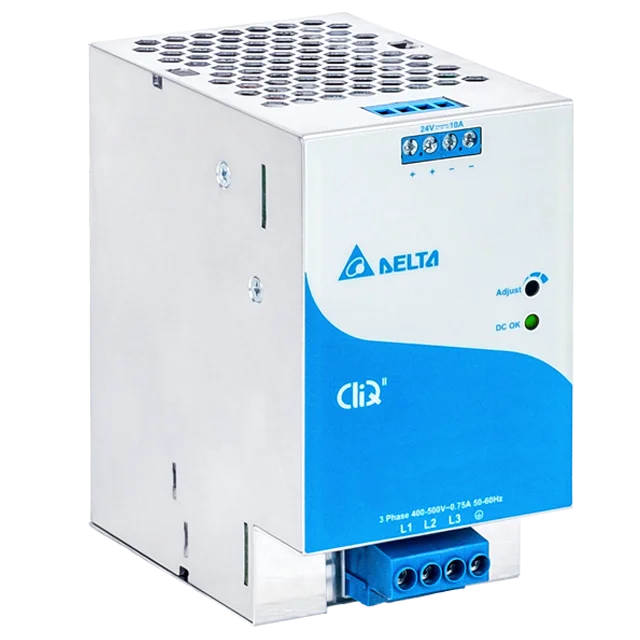

Delta Power Supply 380V/24V 240W
DIN Rail CliQ II Series
Model DRP024V240W3BA
Output Voltage 24V
Output Power 240W
Output Current 10A
Input Voltage Range 3 x 320-600Vac
Dimensions (L x W x H) 121 x 70 x 117.3 mm
Unit Weight 0.89kg
Highlights & Features
- Universal AC input voltage range
- Power will not de-rate for the entire input voltage range
- Power Boost of 150% for 5 seconds
- Full corrosion resistant aluminium casing
- Conforms to harmonic current IEC/EN 61000-3-2, Class A
- Extreme low temperature cold start at -40°C
- Conformal coating on PCBAs to protect against common dust and chemical pollutants
- Hazardous Locations approval for ATEX and Class I, Div 2 (DRP024V240W3BA)
- Certified according to IEC/EN/UL 62368-1
Delta Power Supply DIN Rail 24V 480W
DIN Rail LYTE II Series
Model DRL-24V480W1EN
Output Voltage 24V
Output Power 480W
Output Current 20A
Input Voltage Range 90-264Vac
Dimensions (L x W x H) 123.6 x 56 x 116.8 mm
Unit Weight 0.67kg
Highlights & Features
- Universal AC input voltage range
- Built-in constant current circuit for reactive loads
- High power density
- Operate from -40°C to +70°C
- Reduced no-load power consumption
- Compliance with DOE VI Energy Standard
- Compliance to SEMI F47 @ 200Vac
Delta Power Supply DIN Rail 24V 240W
DIN Rail LYTE II Series
Model DRL-24V240W1EN
Output Voltage 24V
Output Power 240W
Output Current 10A
Input Voltage Range 90-264Vac
Dimensions (L x W x H) 123.6 x 40 x 116.8 mm
Unit Weight 0.62 kg
Highlights & Features
- Universal AC input voltage range
- Built-in constant current circuit for reactive loads
- High power density
- Operate from -40°C to +70°C
- Reduced no-load power consumption
- Compliance with DOE VI Energy Standard
- Compliance to SEMI F47 @ 200Vac

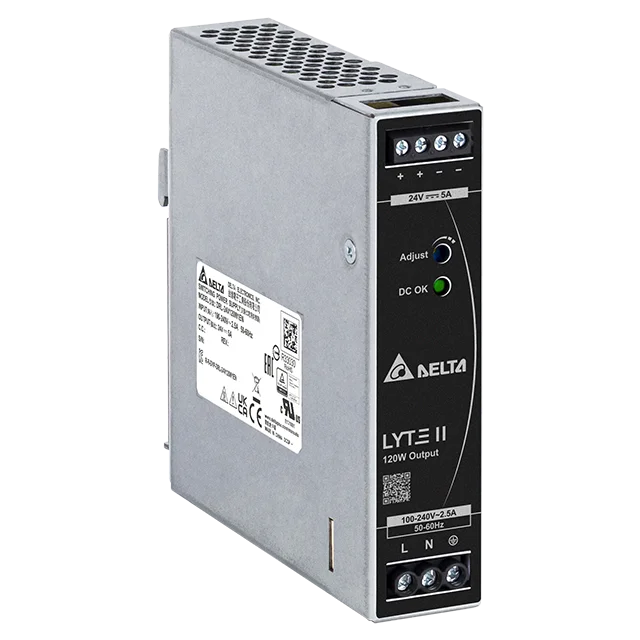

Delta Power Supply DIN Rail 24V 120W
DIN Rail LYTE II Series
Model DRL-24V120W1EN
Output Voltage 24V
Output Power 120W
Output Current 5A
Input Voltage Range 90-264Vac
Dimensions (L x W x H) 123.6 x 30 x 116.8 mm
Unit Weight 0.45 kg
Highlights & Features
- Universal AC input voltage range
- Built-in constant current circuit for reactive loads
- High power density
- Operate from -40°C to +70°C
- Reduced no-load power consumption
- Compliance with DOE VI Energy Standard
- Compliance to SEMI F47 @ 200Vac

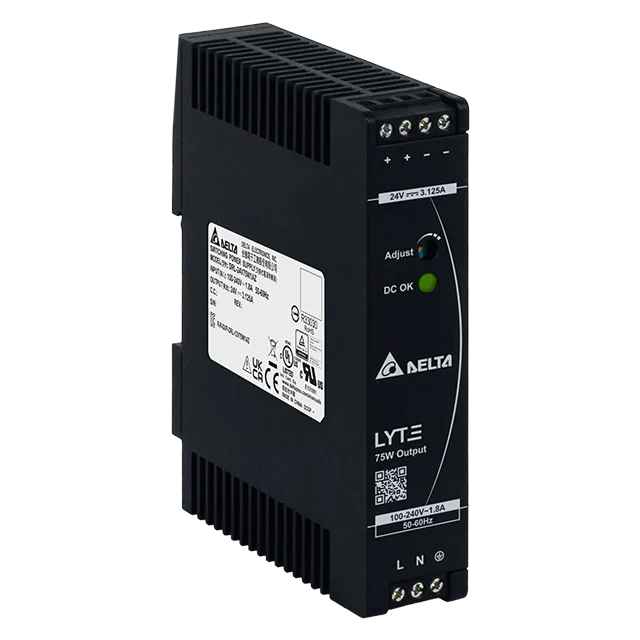

Delta Power Supply DIN Rail 24V 75W
DIN Rail LYTE Series
Model DRL-24V75W1AZ
Output Voltage 24V
Output Power 75W
Output Current 3.125A
Input Voltage Range 85-264Vac
Dimensions (L x W x H) 123.6 x 27 x 102 mm
Unit Weight 0.22 kg
Highlights & Features
- Universal AC input voltage range
- Built-in constant current circuit for reactive loads
- Up to 89% efficiency
- Full power from -10°C to +50°C @ 230Vac with -30°C Cold Start
- Compliance to SEMI F47 @ 200Vac
- Limited Power Source (LPS) certified

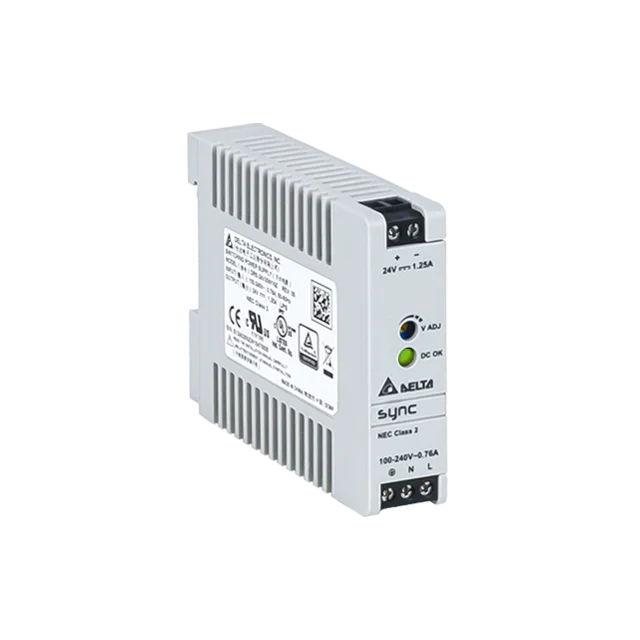

Delta Power Supply DIN Rail 24V 30W
DIN Rail SYNC Series
Model DRS-24V30W1NZ
Output Voltage 24V
Output Power 30W
Output Current 1.25A
Input Voltage Range 90-264Vac
Dimensions (L x W x H) 75 x 21 x 89.5 mm
Unit Weight 0.11 kg
Highlights & Features
- Ultra compact size and galvanic isolation up to 3.0KVac between input to output and input to ground
- Universal AC input voltage and full power from -10°C to +55°C operation
- Up to 88.0% efficiency
- Low earth leakage current < 1.0mA @ 264Vac
- Extreme low temperature cold start at -40°C
- NEC Class 2 / Limited Power Source (LPS) certified
- Overvoltage / Overcurrent / Over Temperature Protections
- Certified according to IEC/EN/UL 62368-1
Delta Power Supply Panel Mount 24V 150W
Panel Mount PMT2 Series
Model 24V150W2BA
Output Voltage 24V
Output Power 150W
Output Current 6.25A
Input Voltage Range 90-264Vac
Dimensions (L x W x H) 59 x 97 x 30 mm
Unit Weight 0.354 kg
Highlights & Features
- Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
- Universal AC input voltage range
- No load power consumption < 0.3W
- Low profile design : 29mm height
- OVC III, Pollution Degree 3
- Wide operating temp -30°C ~ 70°C (Support -40°C cold start)
- Conforms to harmonic current IEC/EN 61000-3-2, Class A
- High MTBF > 700,000 hrs per Telcordia SR-332
- Compliance with SEMI-F47
Delta Power Supply Panel Mount 24V 100W
Panel Mount PMT2 Series
Model 24V100W2BA
Output Voltage 24V
Output Power 108W
Output Current 4.5A
Input Voltage Range 90-264Vac
Dimensions (L x W x H) 129 x 97 x 30 mm
Unit Weight 0.285 kg
Highlights & Features
- Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
- Universal AC input voltage range
- No load power consumption < 0.3W
- Low profile design : 29mm height
- OVC III, Pollution Degree 3
- Wide operating temp -30°C ~ 70°C (Support -40°C cold start)
- Conforms to harmonic current IEC/EN 61000-3-2, Class A
- High MTBF > 700,000 hrs per Telcordia SR-332
- Compliance with SEMI-F47
Delta Power Supply Panel Mount 24V 50W
Panel Mount PMT2 Series
Model 24V50W2BA
Output Voltage 24V
Output Power 53W
Output Current 2.2A
Input Voltage Range 90-264Vac
Dimensions (L x W x H) 99 x 82 x 29 mm
Unit Weight 0.176 kg
Highlights & Features
- Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
- Universal AC input voltage range
- No load power consumption < 0.3W
- Low profile design : 29mm height
- OVC III, Pollution Degree 3
- Wide operating temp -30°C ~ 70°C (Support -40°C cold start)
- Conforms to harmonic current IEC/EN 61000-3-2, Class A
- High MTBF > 700,000 hrs per Telcordia SR-332
- Compliance with SEMI-F47

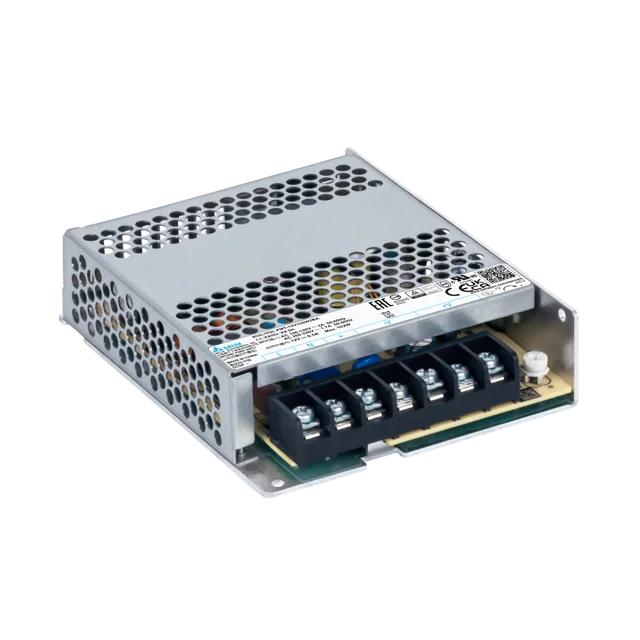

Delta Power Supply Panel Mount 12V 100W
Panel Mount PMT2 Series
Model 12V100W2BA
Output Voltage 12V
Output Power 102W
Output Current 8.5A
Input Voltage Range 90-264Vac
Dimensions (L x W x H) 129 x 97 x 30 mm
Unit Weight 0.285 kg
Highlights & Features
- Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
- Universal AC input voltage range
- No load power consumption < 0.3W
- Low profile design : 30mm height
- OVC III, Pollution Degree 3
- Wide operating temp -30°C ~ 70°C (Support -40°C cold start)
- Conforms to harmonic current IEC/EN 61000-3-2, Class A
- High MTBF > 700,000 hrs per Telcordia SR-332
- Compliance with SEMI-F47
Delta Power Supply Panel Mount 12V 50W
Panel Mount PMT2 Series
Model PMT-12V50W2BA
Output Voltage 12V
Output Power 50.4W
Output Current 4.2A
Input Voltage Range 90-264Vac
Dimensions (L x W x H) 99 x 82 x 29 mm
Unit Weight 0.176 kg (0.39 lb)
Highlights & Features
- Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
- Universal AC input voltage range
- No load power consumption < 0.3W
- Low profile design : 30mm height
- OVC III, Pollution Degree 3
- Wide operating temp -30°C ~ 70°C (Support -40°C cold start)
- Conforms to harmonic current IEC/EN 61000-3-2, Class A
- High MTBF > 700,000 hrs per Telcordia SR-332
- Compliance with SEMI-F47
