Description

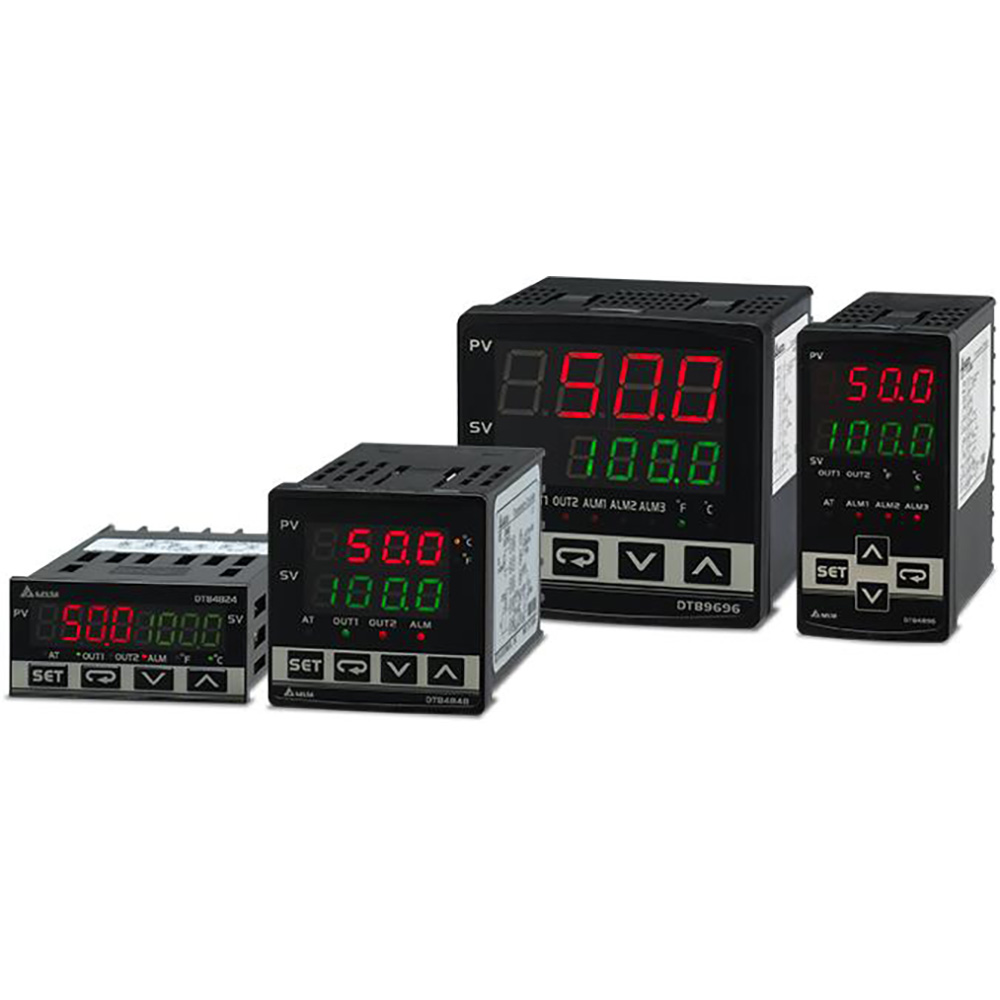

DELTA DTB4824VR Advanced Temperature Controller

The DELTA DTB4824VR is an advanced digital temperature controller from Delta’s DTB Series, designed for industrial heating, cooling, and process temperature control applications.

The controller comes in a compact 48 × 24 mm panel size, also known as 1/32 DIN, making it suitable for control panels, machines, ovens, packaging systems, heating equipment, cooling systems, and industrial automation applications. The model-specific listing confirms DTB4824VR, DTB Series, 48 × 24 mm, AC 100–240V power supply, and 2-line 7-segment LED display.

The DTB4824VR supports temperature and analog signal inputs including thermocouples, Pt100 / JPt100 RTD, and analog inputs such as 0–5V, 0–10V, 0–20mA, 4–20mA, and 0–50mV.

This model provides Output 1: Voltage Pulse and Output 2: Relay, making it suitable for SSR control, heater control, cooling control, alarm output, and dual-loop heating/cooling applications.

Key Features

• Delta DTB Series advanced temperature controller
• Model: DTB4824VR
• Panel size: 48 × 24 mm
• 1/32 DIN compact design
• Output 1: Voltage pulse output
• Output 2: Relay output
• Universal input support
• Thermocouple input support
• Pt100 / JPt100 RTD input support
• Analog voltage/current input support
• PID / ON-OFF / Manual / Programmable PID control
• Dual-loop heating/cooling control support
• RS-485 communication
• Modbus ASCII / RTU communication protocol
• 2-line 7-segment LED display
• Panel protection level IP65
• Suitable for industrial heating, cooling, and machine control panels

Technical Specifications

ملاحظة فنية: في سلسلة DTB4824 لا توجد optional function ولا extra alarm output مستقلة، لكن يمكن ضبط Output 2 كـ alarm output حسب جدول الملاحظات في ورقة التعليمات.

Typical Applications

The DELTA DTB4824VR Temperature Controller is suitable for:

• Industrial temperature control panels
• Heater control using SSR
• Oven and dryer control
• Cooling system control
• Packaging machines
• Plastic machinery
• Food and beverage production lines
• Textile machines
• Water treatment systems
• HVAC and process temperature control
• Dual-loop heating/cooling applications
• PLC / HMI / SCADA monitored temperature systems

Why Use DELTA DTB4824VR?

The DTB4824VR is a strong choice when the application requires a compact temperature controller with both voltage pulse output and relay output. The voltage pulse output is commonly used for SSR-based heater control, while the relay output can be used for cooling, alarm, or secondary control depending on the application configuration.

With RS-485 Modbus communication, the controller can be integrated with PLC, HMI, or SCADA systems for monitoring and parameter adjustment. The DTB Series also supports dual-loop heating/cooling control and programmable PID control, making it more flexible than basic temperature controllers.
