80G radar level meter
Description

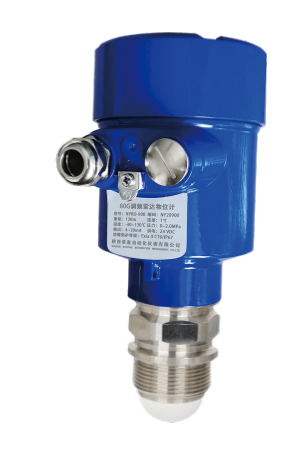

80GHz Radar Level Meter
Non-contact radar level transmitter for industrial tank level measurement. Suitable for applications requiring continuous level monitoring, 4–20 mA + HART output, and technical selection based on actual process conditions.
Product Overview
The 80GHz radar level meter is used for continuous level measurement in tanks and process vessels. It is a non-contact measuring solution, which helps reduce mechanical wear and avoids direct contact with the measured medium.
AIC reviews the application before quotation to confirm the suitable configuration according to tank height, medium, temperature, pressure, nozzle, connection, and output signal requirements.
Suitable where contact with the medium is not preferred.
4–20 mA + HART output for PLC, DCS, indicator, or monitoring systems.
Final selection depends on real tank and process conditions.
Technical Specifications
| Product Type | 80GHz Radar Level Meter |
|---|---|
| Model | NYRD-900 |
| Measurement Principle | Non-contact radar level measurement |
| Radar Frequency | 80 GHz |
| Measuring Range | 30 m |
| Power Supply | 24 VDC |
| Output Signal | 4–20 mA + HART |
| Process Temperature | 0–130 °C |
| Process Pressure | -0.1 to 0.3 MPa |
| Certification | CE certification |
Typical Applications
Continuous level monitoring in industrial storage tanks.
Level measurement in utility and water-related applications.
Level measurement where process conditions must be technically reviewed.
Possible use after confirming medium compatibility and process conditions.
Required Data for Quotation
To prepare a correct quotation, please send the available technical data with your inquiry.
- Tank height and measuring range.
- Process medium: liquid, powder, vapor, foam, dust, or agitation condition.
- Operating temperature and pressure.
- Required output signal and power supply.
- Process connection or nozzle size.
- Quantity and required delivery time.
- Photos of tank top or existing installation if available.
Basic Installation Notes
- Install away from internal obstacles such as ladders, pipes, coils, or agitators where possible.
- Check nozzle height and diameter before final selection.
- Confirm vapor, foam, condensation, dust, or agitation conditions.
- Follow the supplied product manual for final installation and commissioning.
Need a Quotation for 80GHz Radar Level Meter?
Send your application details to AIC. Include tank height, medium, temperature, pressure, process connection, output signal, quantity, and available photos or datasheets.
Brand
NUOYING
Nuoying – Precision Engineering by Xi'an Dehou Electronic Technology
Nuoying is the specialized industrial brand of Xi'an Dehou Electronic Technology Co., Ltd., a leader in high-performance sensing and measurement technology. The brand is renowned for its NY-93420 series pressure transmitters, which utilize advanced diffused silicon technology and high-precision semiconductor micromachining. Every Nuoying instrument is crafted with an all-stainless steel shell and features a specialized laser cold welding process to ensure maximum durability and airtight integrity in the most demanding industrial environments.
