Description

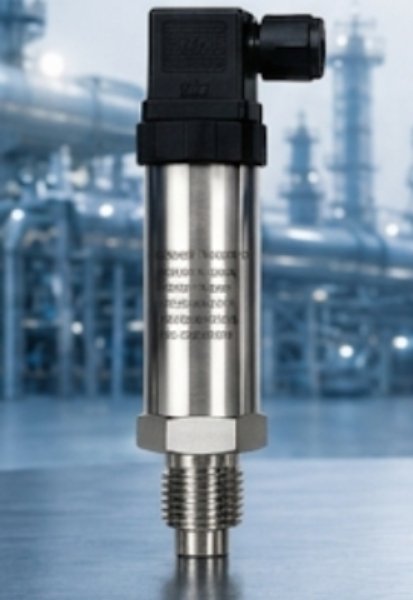

NY-93420 Pressure Transmitter – 1-5V Output

The NY-93420 Pressure Transmitter is designed for industrial pressure measurement applications where a voltage analog signal is required. This version provides a 1-5V output signal using a 3-wire connection, making it suitable for connection to PLC, controller, data acquisition systems, and industrial monitoring panels.

Key Features

• Model: NY-93420
• Output Signal: 1-5V
• Wiring Type: 3-Wire
• Suitable for industrial pressure measurement applications
• Can be integrated with PLC analog voltage input modules
• Applicable for control panels, monitoring systems, and process automation

Typical Applications

• Industrial pressure monitoring
• Water and wastewater systems
• Pump and piping systems
• Process control applications
• PLC / HMI monitoring systems
• Control panel integration

Wiring Concept

This transmitter uses a 3-wire connection. The typical connection concept is:

• Power +: transmitter supply positive
• 0V / GND: transmitter supply negative / common
• Signal OUT: 1-5V analog output to voltage analog input

Final wiring must be confirmed from the product datasheet or terminal diagram before installation.

Technical Support

AIC can support product selection, wiring review, PLC analog input scaling, replacement selection, and quotation preparation. For accurate support, please send the pressure range, process connection, supply voltage, application medium, and installation conditions.
